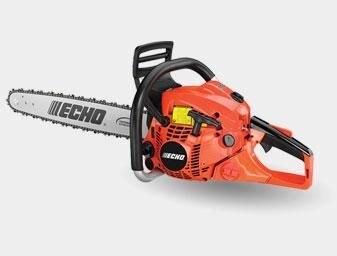

Echo CS- 501P

Videos
Call for Price
Overview

Less workout in your workday. Made with pros in mind, the CS-501P is the lightest 50 cc chainsaw in North America, built to deliver confident cuts without added effort.

TOP FEATURES

  • Aluminum handle with rubber grip
  • Lightest chainsaw in its class
  • 50.2 cc professional-grade, 2-stroke engine



Specifications
Model
CS- 501P
Category Name
Power Equipment
Year
2025
Sale Type
New
Manufacturer
Echo
Handle
Aluminum
Warranty
5 year consumer / 1 year commercial
Bar Type
Pro-Lite®
Oiling System
Automatic/Adjustable (Clutch-Driven)
Sprocket Cover
Plastic
Ignition System
Digital
Sprocket Type
Rim
Oil Capacity (ml)
281 (9.5 fl. oz.)
Starting System
Standard
Dry Weight (lbs) 1
10.6 (4.8 kg)
Fuel Capacity (ml)
16.6
Carburetor (w/Purge Pump)
Butterfly-Valve Diaphragm
Engine Displacement (cc)
50.2
Available Bar Lengths (in)
16, 18, 20
Vibration Reduction System
Standard
Engine Displacement (cu In)
3.06

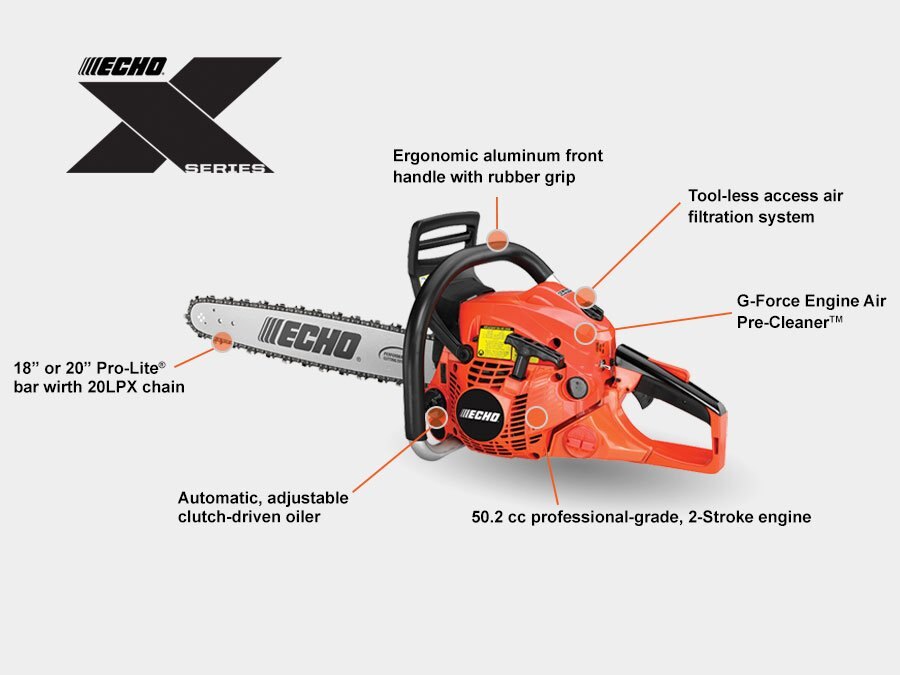

features

MORE POWER WITHOUT MORE WEIGHT

50.2 cc professional-grade, 2-stroke engine

For outstanding performance and durability

Professional-grade bar and chain

Performance Cutting System(TM) maximizes cutting ability and durability

G-Force Engine Air Pre-Cleaner™

Extends air filter life and reduces maintenance intervals

Captive bar nuts

Prevent loss of hardware

Automatic, adjustable clutch-driven oiler

Operates only when the chain is moving to reduce oil consumption

Top-mounted, tool-less access, two piece air filter

Provides for easy access and easy cleaning

Ergonomic aluminum front handle

Improves comfort and maneuverability

Decompression valve

Reduces rope-pulling effort for easier starts



literature
Name      Link
CS-501P Parts Catalog                                                   Download
CS-501P Operator's Manual                                             Download
CS-501P Operator's Manual                                             Download
